Emqx-ACL

Introduction

This document describes how EMQX delegates MQTT client authentication and per-topic ACL enforcement to an external HTTP service. You’ll see:

1. What the HTTP service must return
2. How EMQX calls and consumes that response

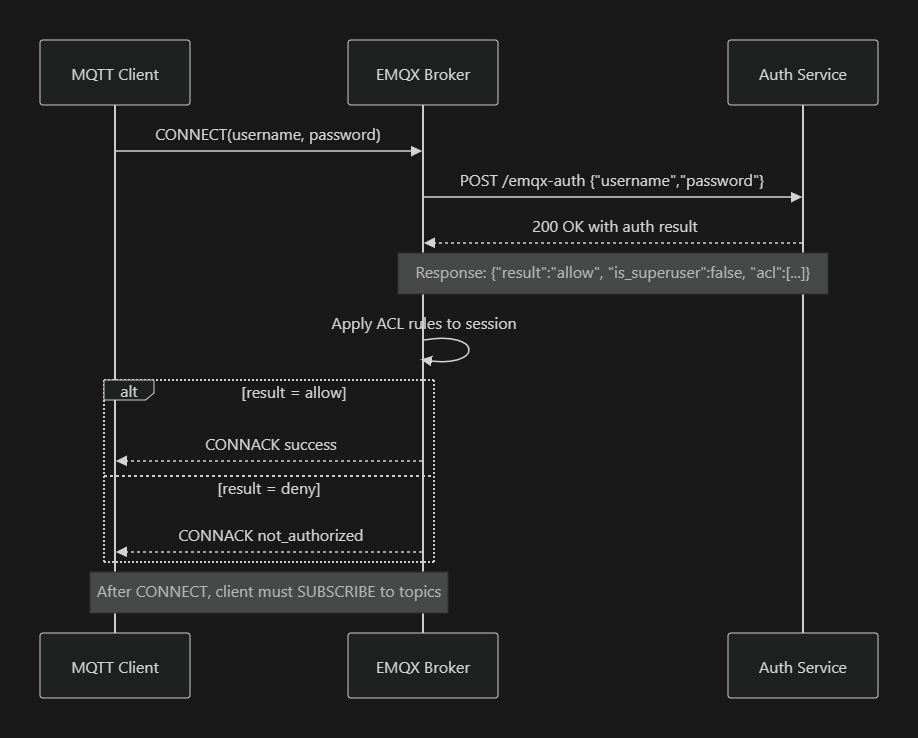

3. A sequence diagram illustrating the interaction
4. Dashboard configuration and client usage
5. Troubleshooting tips

---

Data Flow Overview

Before diving into configuration details, here’s a high-level view of the runtime flow:

1. An MQTT client attempts to CONNECT to EMQX with a username/password.
2. EMQX issues an HTTP POST to your /emqx-auth endpoint, passing those credentials.
3. Your service validates the user and returns a flat JSON including result and an acl array.
4. EMQX reads result to accept or reject the connection, and—on success—applies each ACL entry as a topic filter.
5. The client then issues SUBSCRIBE calls, which EMQX authorizes against the installed ACLs.

Backend Response Format

Your /emqx-auth endpoint must return HTTP 200 and a JSON object at its root:

{
  "result":       "allow",        // or "deny"
  "is_superuser": false,          // true for superadmin
  "acl": [
    {
      "permission": "allow",      // "allow" or "deny"
      "action":     "all",        // "publish"|"subscribe"|"all"
      "topic":      "dt/V01/GPRSV2/+/VCUA/#"
    },
    {
      "permission": "allow",
      "action":     "all",
      "topic":      "cmd/V01/GPRSV2/+/VCUA/#"
    }
  ]
}

• result controls CONNECT approval.
• acl entries drive EMQX’s per-session topic filters.

---

EMQX Dashboard Setup

1. Disable any HTTP entries under Access Control ▶ Authorization.

2. Create a new HTTP AuthN under Access Control ▶ Authentication:

   • Mechanism: Password‐Based
   • Backend: HTTP Server
   • Method: POST
   • URL:
     • Bridge: http://172.17.0.1:3010/emqx-auth
     • Host-networked: http://127.0.0.1:3010/emqx-auth
   • Headers: Content-Type: application/json

   • Body (raw JSON):

     {
       "username": "${username}",
       "password": "${password}"
     }


3. Save and toggle the entry ON.

---

MQTT Client Usage

After a successful CONNECT (CONNACK), the client must explicitly subscribe to its allowed topics:

mosquitto_sub \
  -h <EMQX_HOST> \
  -u username@example.com \
  -P theirPassword \
  -t 'dt/V01/GPRSV2/+/VCUA/#'

Or in code:

client.subscribe('dt/V01/GPRSV2/+/VCUA/#', (err, granted) => {
  console.log(granted);
});

---

Troubleshooting

Symptom	Cause & Fix
health_check_failed / Connection refused	EMQX’s GET health-check is failing. Ensure your service listens on 0.0.0.0:3010 and add a GET /emqx-auth returning HTTP 200.
not_authorized	Endpoint returned non-200 or result:"deny". Verify @HttpCode(200) on your POST handler and the JSON contains result:"allow".
No messages after SUBSCRIBE	Make sure you subscribe to the exact topic filters returned in the acl array.

With this configuration, EMQX will enforce exactly the per-topic permissions your HTTP service provides, and clients will only see the topics you allow.
